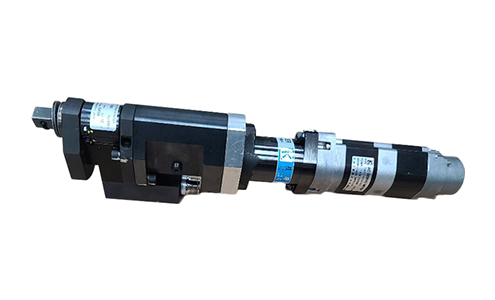

ANZM-SFFT TYPE오프셋 타입 너트런너

ANZM-SFFT TYPE은 오프셋 타입으로 스트레이트 타입만으로 배치하지 못하는 시스템에 적용됩니다.
기본적으로 오프셋 타입은 동일 모델의 스트레이트 너트런너와 스펙을 공유합니다.

Specification/Dimension Table

Offset type

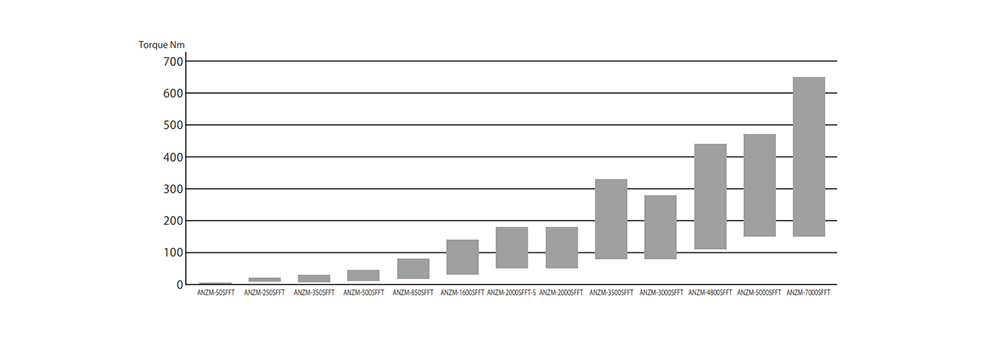

Model Max torque [N・m] Maximum rotational speed [rpm] Weight[kg] Drive power supply (AC200V) Supply current capacity Rated value [A rms] Torque sensor model Crosspounding controller
ANZM-50SFFT 4.5 1700 1.8 0.6 ZFT-50 GSK-14(T4)-E-N2 GSKW-14(T4)-E-N2
ANZM-250SFFT 20 310 2.5 0.6 ZFT-351
ANZM-350SFFT 30 430 2.8 1.2 ZFT-350
ANZM-500SFFT 45 310 2.8 1.2 ZFT-500
ANZM-850SFFTT 80 420 7.8 2.3 ZFT-850
ANZM-1600SFFT 140 420 8.9 4.5 ZFT-1500 GSK-15(T5)-E-N2 GSKW-15(T5)-E-N2
ANZM-2000SFFT-S 180 290 9.7 4.5 ZFTS-2500
ANZM-2000SFFT 180 290 9.7 4.5 ZFT-2500
ANZM-3500SFFT 330 200 12.5 4.5 ZFT-4000
ANZM-3000SFFT 280 235 14.7 8.5 ZFT-4000
ANZM-4800SFFT 440 253 15.0 8.5 ZFT-5500 GSK-17(T7)-E-N2
ANZM-5000SFFT 470 250 23 8.5 ZFT-7500
ANZM-7000SFFT 650 175 23 8.5 ZFT-7500
기코시스템
기코시스템

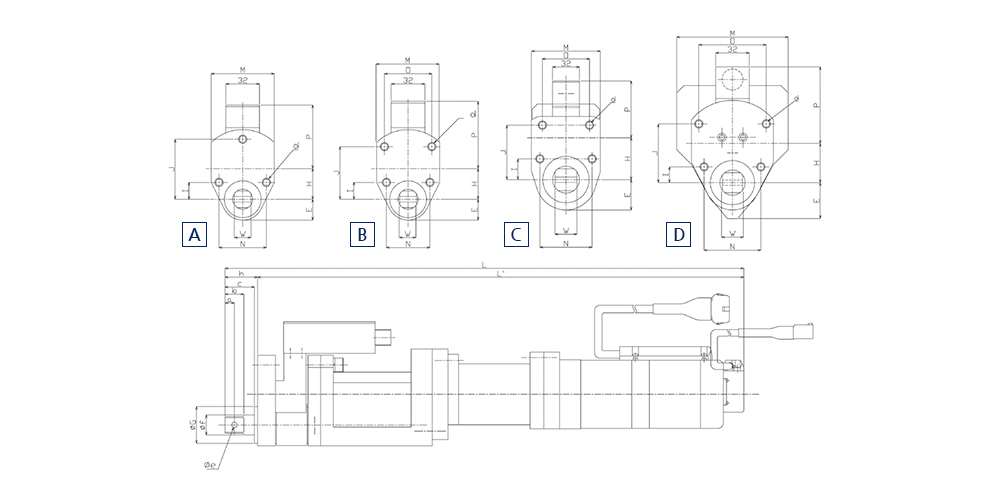

Nut runner model Shape a b c I J N d O e f G L P h M E H W
Reference
dimension
Tolerance Reference
dimension
ANZM-50SFFT A 5 11 19 11 44.5 33 3-M6 - 3.2 12 30 -0.02
-0.04
261.4 239.4 65.5 22 44 15 22 9.52
ANZM-250SFFT A 5 11 19 12 44.5 38 3-M6 - 3.2 12 28 -0.02
-0.04
312.5 290.5 60.5 22 50 15 22.5 9.52
ANZM-350SFFT A 8 16 23 12 44.5 38 3-M6 - 4.2 17 30 -0.02
-0.04
364.7 338.7 61.5 26 50 15 22.5 12.7
ANZM-500SFFT A 8 16 23 13.5 49.5 42 3-M6 - 4.2 17 30 -0.02
-0.04
376.7 350.7 61.5 26 54 17.5 25.5 12.7
ANZM-850SFFT A 9 18 28 16 57 45 3-M8 - 5.2 19 35 -0.025
-0.050
427.9 396.9 68.85 31 60 19.85 29.15 15.87
ANZM-1600SFFT A 9 18 28 16 57 45 3-M8 - 5.2 19 35 -0.025
-0.050
493.2 462.2 68.85 31 60 19.85 29.15 15.87
ANZM-2000SFFT-S A 9 18 28 16 57 45 3-M8 - 5.2 19 35 -0.025
-0.050
530.2 499.2 68.85 31 60 19.85 29.15 15.87
ANZM-2000SFFT B 13 25 36 15 55.8 54 4-M8 64 5.2 24 42 -0.025
-0.050
539.7 500.7 72.73 39 78 26 37.27 19.05
ANZM-3500SFFT B 13 25 36 15 55.8 54 4-M8 64 5.2 24 42 -0.025
-0.050
569.7 530.7 72.73 39 78 26 37.27 19.05
ANZM-3000SFFT C 13 25 36 15 55.8 54 4-M8 64 5.2 24 42 -0.025
-0.050
570.8 531.8 72.73 39 78 26 37.27 19.05
ANZM-4800SFFT D 13 25 36 15 55.8 54 4-M8 64 5.2 24 42 -0.025
-0.050
637.8 598.8 72.73 39 106 26 37.27 19.05
ANZM-5000SFFT C 14.5 30 44 48 64.7 62 4-M10 56 6.3 32 55 -0.025
-0.050
665.3 617.3 68 48 82 36 49.7 25.4
ANZM-7000SFFT C 14.5 30 44 48 64.7 62 4-M10 56 6.3 32 55 -0.025
-0.050
665.3 617.3 68 48 82 36 49.7 25.4
